Checklist Completed

Checklist Completed Field

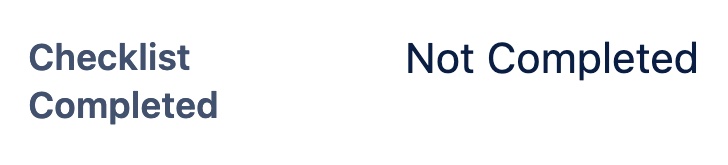

The Checklist Completed field is a single line text field with a value of “All Completed”, “Not Completed” or “Mandatory Completed”. The field only stores the completion status of local checklists associated with the work item, not global checklists.

Initial State

When the work item is created, the Checklist Completed field is null if the work item does not have a checklist. Once a checklist is added to the work item, the field is updated based on the completion status of the items on local checklist(s). If the checklist is removed from the work item, the field will be automatically set to "All Completed".

More Details

Sync checklists to Custom Fields must be enabled.
If there are multiple local checklists on the work item and any of them are incomplete, the field will be set to “Not Completed”.
The field is automatically kept in sync and users should not edit the field value.
Changes to the field trigger work item-updated event which can start Automation rule automatically.

Uses

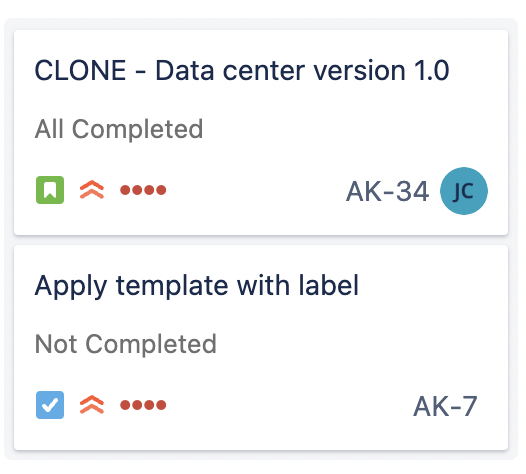

Can be added to screens or work item cards in Jira boards.
Can be used with automation, for example to reopen an work item if the checklist becomes incomplete.
Can be used as an alternative to the built-in validator for blocking a workflow transition.

Adding Checklists Custom Fields to a Team-managed Space

In team-managed spaces, you need to add the Checklists custom fields to the space before you can reference those field in automation rules, exports, etc.. To add the fields to a space:

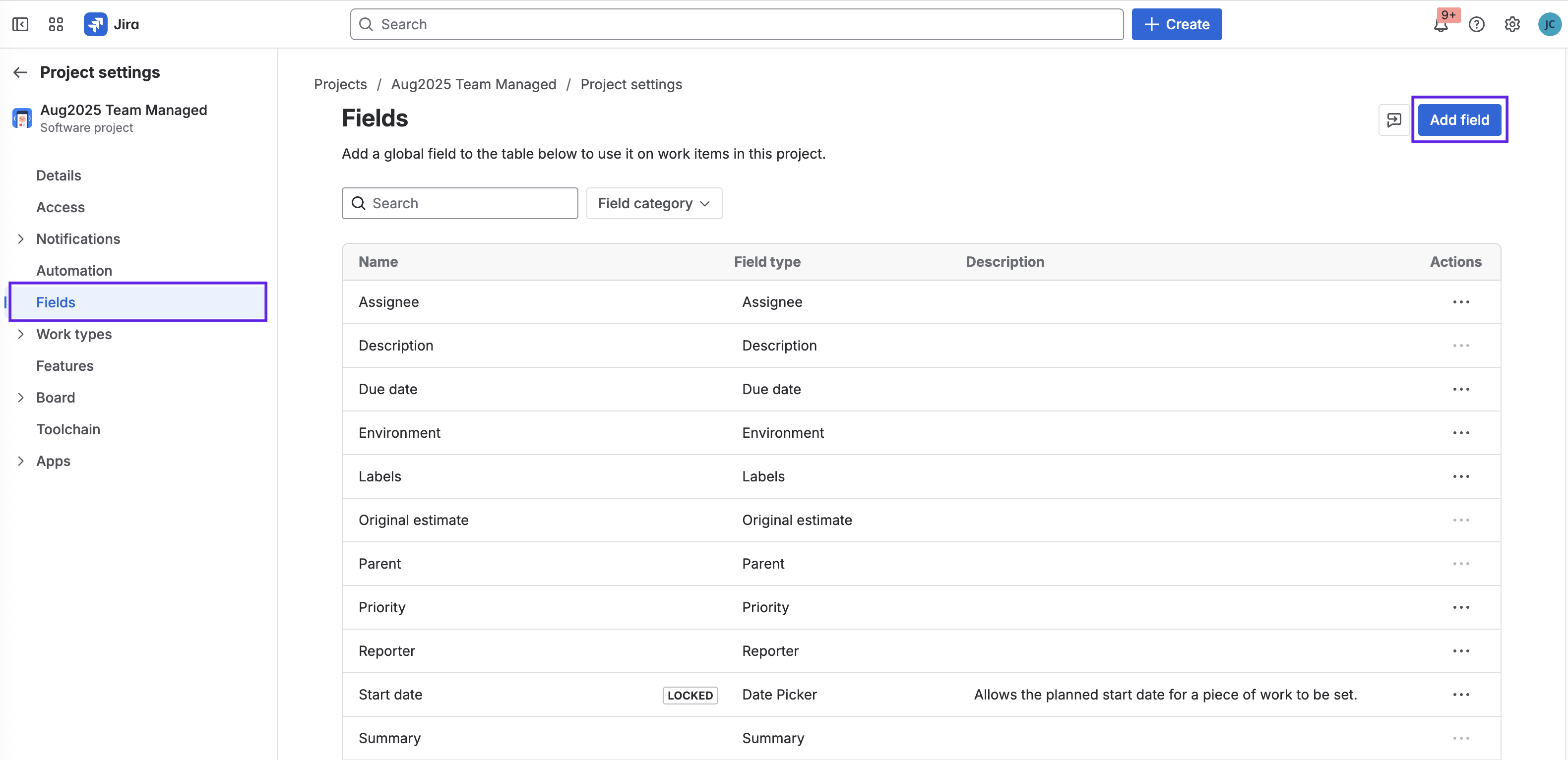

Navigate to Space settings > Fields.
Click Add field.

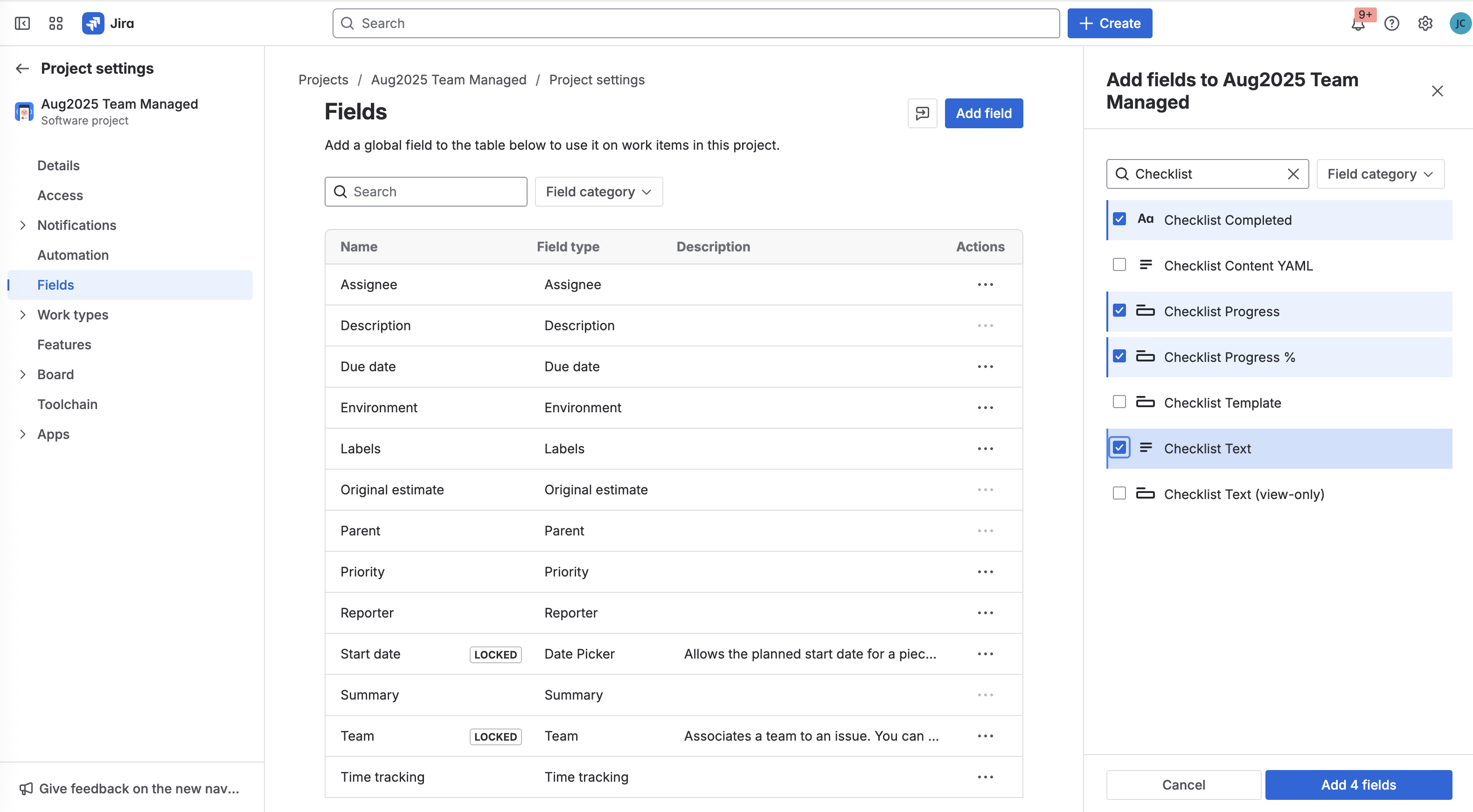

Type checklist in the search box and use the check boxes to select the fields. It is recommended that you add the Checklist Completed, Checklist Progress, Checklist Progress % and Checklist Text fields to the space. (The Checklist Content YAML field and the Checklist Template field have been deprecated.)
Click Add 4 fields.

How to Find the Custom Field ID

When using custom fields with automation, scripts, etc. you may need the ID number of the custom field.

To find the ID of the custom field:

Log in as a Jira Administrator.
Go to Jira Settings > work items > Custom fields.
Search for the indicated custom field.
Click the More menu (…) and select Edit Details.
Copy the URL of the page. The URL will end with the ID number of the custom field.

Custom fields can be duplicated by some errors or rare scenarios. If you are experiencing work items with accessing custom fields, make sure you are referencing the custom field that is currently used by work item Checklist.

Using REST API
Getting custom field IDs using Jira Rest API is a fairly easy process. By using the REST API request, you can easily obtain the custom field ID. Here is an example REST API request (you can open using web browser):

GET https://test-instance.atlassian.net/rest/api/3/field/search?type=custom&query=Checklist

You can run the request using a web browser. However, please keep in mind that this requires administrative privileges, which means that you need to be logged in to an administrator account to run the request successfully.

The result of this request will contain the custom field ID that you're looking for. The response will include a values array that contains a list of custom fields. Each custom field in the array will have an id attribute that you can use to identify it.

It's important to note that the description information in the response can help you identify fields from other plugin versions. This information can provide context about the purpose of the field, allowing you to determine if it's the one you're looking for.

Example result:

JSON

{
  "maxResults": 50,
  "startAt": 0,
  "total": 2,
  "isLast": true,
  "values": [
    {
      "id": "customfield_10034",
      "name": "Checklist Completed",
      "schema": {
        "type": "string",
        "custom": "com.atlassian.jira.plugin.system.customfieldtypes:textfield",
        "customId": 10034
      },
      "description": "Do not delete. Custom field with Checklist completion status. Automatically created and managed by work item Checklist Pro (Sandbox)."
    },
    {
      "id": "customfield_10099",
      "name": "Checklist Completed",
      "schema": {
        "type": "string",
        "custom": "com.atlassian.jira.plugin.system.customfieldtypes:textfield",
        "customId": 10099
      },
      "description": "Do not delete. Custom field with Checklist completion status. Automatically created and managed by work item Checklist Free."
    }
}
